●Description

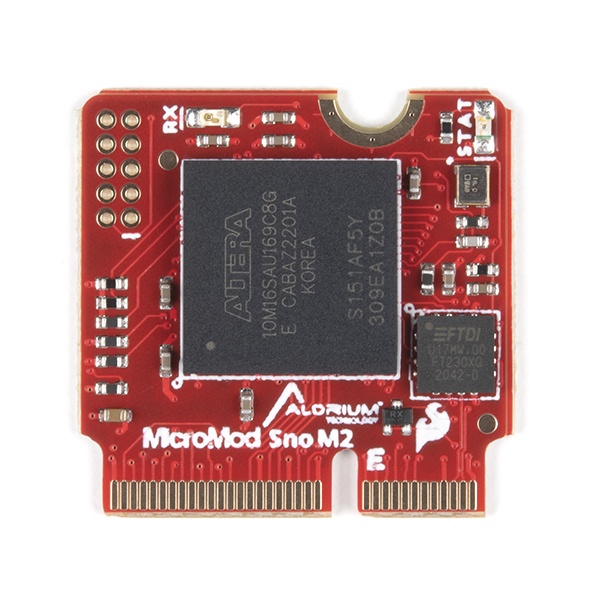

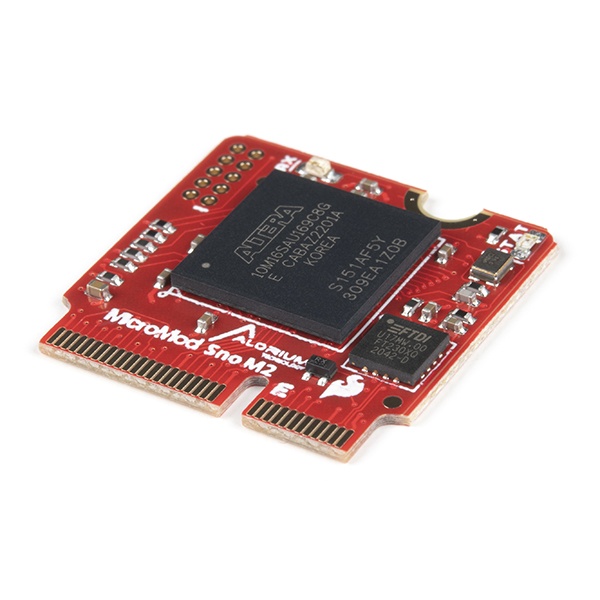

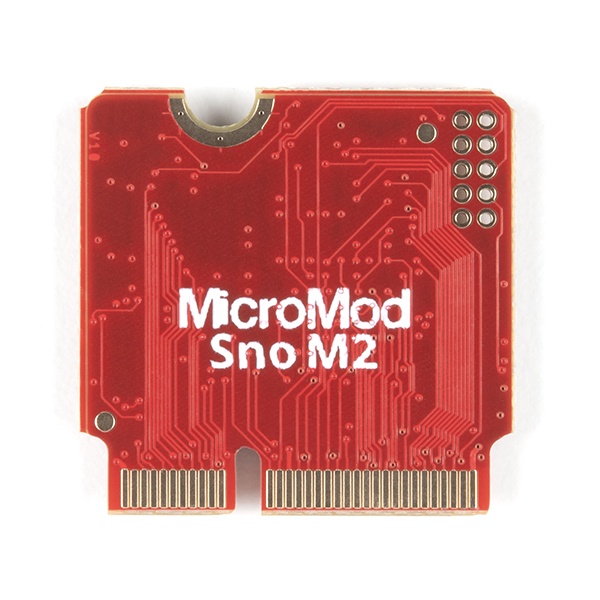

The SparkFun MicroMod Alorium Sno M2 Processor features the Sn? System on Module (SoM) adapted to the MicroMod M.2 processor form factor. Sn?'s FPGA provides a reconfigurable hardware platform that hosts an 8-bit AVR instruction set, compatible with the ATmega328, making Sn? fully compatible with the Arduino IDE. Sn? SoM has a compact footprint, making it ideal for space-constrained applications and an obvious addition to our MicroMod form factor for prototyping.
Alorium Technology provides a library of custom logic called Xcelerator Blocks (XBs) through the Arduino IDE that accelerates specific functionalities that are slow, problematic, or even impossible for an 8-bit microcontroller. This library includes XBs such as Servo Control, Quadrature, Floating Point Math, NeoPixel, and Enhanced Analog-to-Digital Converter. Alorium also notes a XB roadmap where future XBs will be implemented based on feedback from early adopters and new potential customers.
For advanced users, there is a JTAG footprint on the board allowing a JTAG programmer to talk to the FPGA directly. The microcontroller core has been designed to be easily extendable, and Alorium Technology has developed a support model for users who want to create their own XBs and interface to the on-chip microcontroller.
MicroMod is a modular interface ecosystem that connects a microcontroller “processor board” to various “carrier board” peripherals. Utilizing the M.2 standard, the MicroMod standard is designed to easily swap out processors on the fly. Pair a specialized carrier board for the project you need with your choice of compatible processor!
Get Started with the MicroMod Alorium Sno M2 Processor Guide ●Features
Alorium Sno Processor General Features:
・Intel(R) MAX(R) 10 FPGA (16K LEs)・10M16SAU169C8G
・Programmable with Arduino IDE
・Embedded 8-bit AVR instruction set compatible microcontroller (ATmega328 compatible)
・Configurable with custom Xcelerator Blocks (XBs) on the FPGA
・Programming interface: USB Serial
・Operating voltage: 3.3V
・Clock Speed 16/32MHz
Digital I/O
・32 Dedicated Digital Pins
・6 Shared Digital with Analog Pins
・3.3V Inputs
・3.3V Outputs
Analog Inputs
・6 Analog Pins
・3.3V Analog Reference
・ADC Performance: 1MHz
・Resolution: 12-bit sustained
・Sample Rate: 254k samples/second
Memory
・Program FLASH 32KB
・Data memory SRAM: 2KB
Specific Peripherals available on MicroMod Alorium Sno M2 Processor:
・JTAG footprint for direct FPGA programming
・M.2 keyed interface for integration with SparkFun MicroMod carrier boards
