●Description

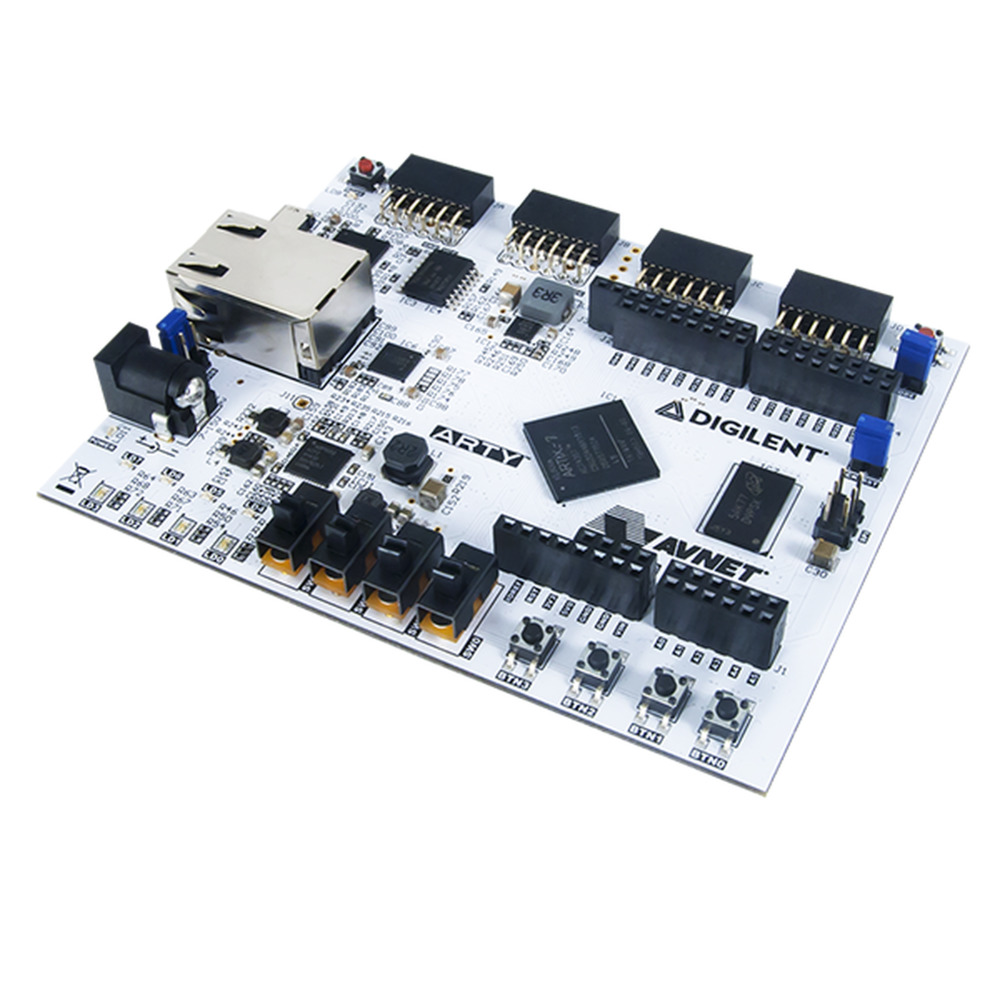

The Arty family of Digilent FPGA/SoC boards was designed with versatility and flexibility in mind. With universally popular Arduino headers and multiple Pmod ports, an Arty will be the most adaptable FPGA/SoC board in your toolbox.The Arty A7 is a ready-to-use development platform designed around the Xilinx Artix-7 FPGA family. With the Artix-7 devices, the Arty A7 board provides the highest performance-per-watt fabric, transceiver line rates, DSP processing, and AMS integration in the Arty family. With the MicroBlaze Soft Processor Core from Xilinx, you can create embedded applications with a variety of peripherals, memory, and interfaces.The Arty A7 is supported by Xilinx's Vivado Design Suite, including the free WebPACK version. You can also leverage the Vitis Core Development Kit or Xilinx Software Development Kit to start developing for the MicroBlaze processor with no prior FPGA experience.There are two variants of the Arty A7: The Arty A7-35T features the XC7A35TICSG324-1L, and the Arty A7-100T features the larger XC7A100TCSG324-1.If the Arty A7 offers more performance than your application requires, the more affordable Arty S7, featuring the Spartan-7 FPGA, may be a better option. If you are looking for an SoC-based development board, consider the Arty Z7, featuring the Zynq-7000 APSoC.Guides and demos are available to help you get started quickly with the Arty A7. These can be found through the Support Materials tab.

●Features

・FPGA Features
　〇Internal clock speeds exceeding 450MHz
　〇On-chip analog-to-digital converter (XADC)
　〇Programmable over JTAG and Quad-SPI Flash
・System Features
　〇256MB DDR3L with a 16-bit bus @ 667MHz
　〇16MB Quad-SPI Flash
　〇USB-JTAG Programming circuitry(Micro B USB cableNOT included)
　〇Powered from USB or any 7V-15V source
・System Connectivity
　〇10/100 Mbps Ethernet
　〇USB-UART Bridge
・Interaction and Sensory Devices
　〇4 Switches
　〇4 Buttons
　〇1 Reset Button
　〇4 LEDs
　〇4 RGB LEDs
・Expansion Connectors
　〇4 Pmod connectors
　〇Arduino/chipKIT Shield connector

・Product Compliance:
　〇HTC:8471500150
　〇ECCN:EAR99

●What's Included

・Arty A7: Artix-7 Development Board (Micro B USB cable NOT included)
・Digilent cardboard packaging with protective foam
