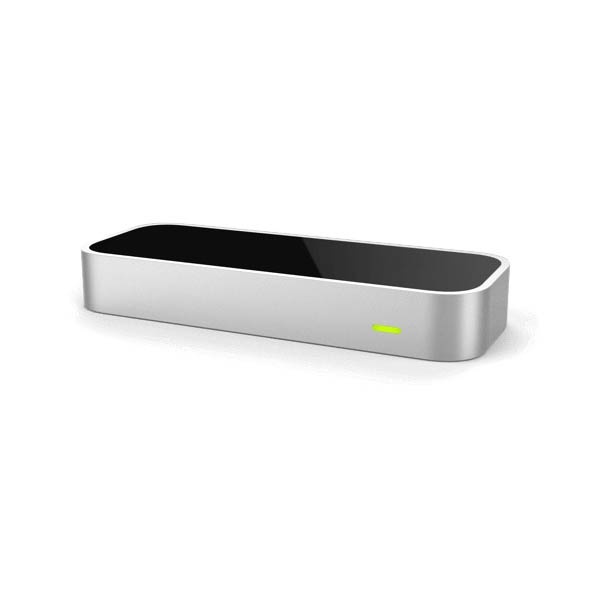

The Leap Motion Controller from Ultraleap is an optical hand tracking module that captures the movement ofusers' hands and fingers so they can interact naturally with digital content. Small, fast, and accurate, the LeapMotion Control can be used for productivity applications with Windows computers, integrated into enterprise-grade hardware solutions or displays, or attached to virtual/augmented reality headsets for AR/VR/XR prototyping,research, and development.
The controller is capable of tracking hands within a 3D interactive zone that extends up to 60cm (24”) or more,extending from the device in a 120×150° field of view. Leap Motion‘s software is able to discern 27 distinct handelements, including bones and joints, and track them even when they are obscured by other parts of the hand.With a 120Hz refresh rate and low-latency software, the time between motion and photon falls beneath thehuman perception threshold.
An accessory component, the VR Developer Mount, allows for easy, reliable, and consistent attachment of thedevice to virtual reality headsets such as the Oculus Rift and HTC Vive. The Leap Motion App Gallery features 75+legacy desktop applications and a demo suite for virtual reality.
・Power supply: USB
・Data connection: USB 2.0 (packaged with USB 2/3 hybrid cable, but can be used with any certifi ed USBcables with the Hi-Speed USB 2.0 logo featured on the packaging)
・Ingress protection: Splash resistant
・Mounting methods: May be placed on a desktop, mounted on a VR headset using the Leap Motion VRDeveloper Mount, or recessed into a larger hardware installation
・Interaction zone: 60cm (24") or more, extending from the device in a 120×150° field of view(approximately 8 cubic feet or 0.2 cubic meters of interactive space)
・Cameras: Two 640x240-pixel near-infrared cameras; spaced 40 millimetres apart; withinfrared-transparent window, operate in the 850 nanometre +/-25 spectral range;typically operates at 120Hz but hardware is capable of 240+; capable of imagecapture within 1/2000th of a second
・Camera interface: Experimental Universal Video Class (UVC) release provides access to low-levelcontrols such as LED brightness, gamma, exposure, gain, resolution, etc.; examplesin C, Python, and Matlab, as well as OpenCV bindings
・LEDs: Three, spaced on either side and between the cameras, to prevent overlaps
・Range: Arm's length, up to roughly 80 cm; varies depending on hand perspective conditions
・Construction: Aluminium and scratch-resistant glass
・Ambient operating temperature: 32℃ to 113℃ F (0℃ to 45℃C)
・Storage temperature: 14℃ to 122℃ F (-10℃ to 50℃ C)
・Relative Humidity: 5% to 85% (non-condensing)
・Operating Altitude: 0 to 10,000 feet (0 to 3048 meters)
・Compliance: CE, FCC, CAN ICES-3
・Minimum system requirements (desktop): Windows(R) 7+ or Mac(R) OS X 10.7 (note that OSX is no longer formally supported); AMD Phenom(TM) II or Intel(R) Core(TM) i3/i5/i7 processor; 2 GB RAM; USB 2.0 port
・Minimum system requirements (VR): Windows 7 SP1 64 bit or newer; Intel(R) Core(TM) i5-4590 equivalent or greater; 8GB+RAM; 3x USB 3.0 port; NVIDIA GTX 970 / AMD R9 290 equivalent or greater withcompatible HDMI 1.3 video output
