| 通信方式 | IEEE 802.11a
*IPv6(IPoE/IPv4 over IPv6)対応確認済みリスト
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
IPv4
IPv6 |
| 製品区分 | AX3000 ultimate AX performance : 2402 Mbps+ 574 Mbps |
| データ帯域 | 802.11a : up to 54 Mbps
802.11b : up to 11 Mbps
802.11g : up to 54 Mbps
802.11n：最大300Mbps
802.11ac (1024QAM)：最大1733Mbps
802.11ax (2.4GHz)：最大574Mbps
802.11ax (5GHz)：最大2402Mbps |
| アンテナ | 外付けアンテナ×4 |
| アンテナ仕様 | 2.4GHz帯2×2
5GHz-1帯2×2 |
| プロセッサ | Broadcom 6750（1.5GHz、トリプルコア） |
| メモリ | 512 MBメインメモリ、256 MBフラッシュメモリ |
| ブーストスピード | OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
1024-QAM high data rate
20/40/80/160 MHz bandwidth |
| 対応周波数 | 2.4 GHz / 5 GHz |
| オペレーティングモード | Wireless router mode
Access point mode
Media bridge mode
Repeater mode
AiMesh node mode |

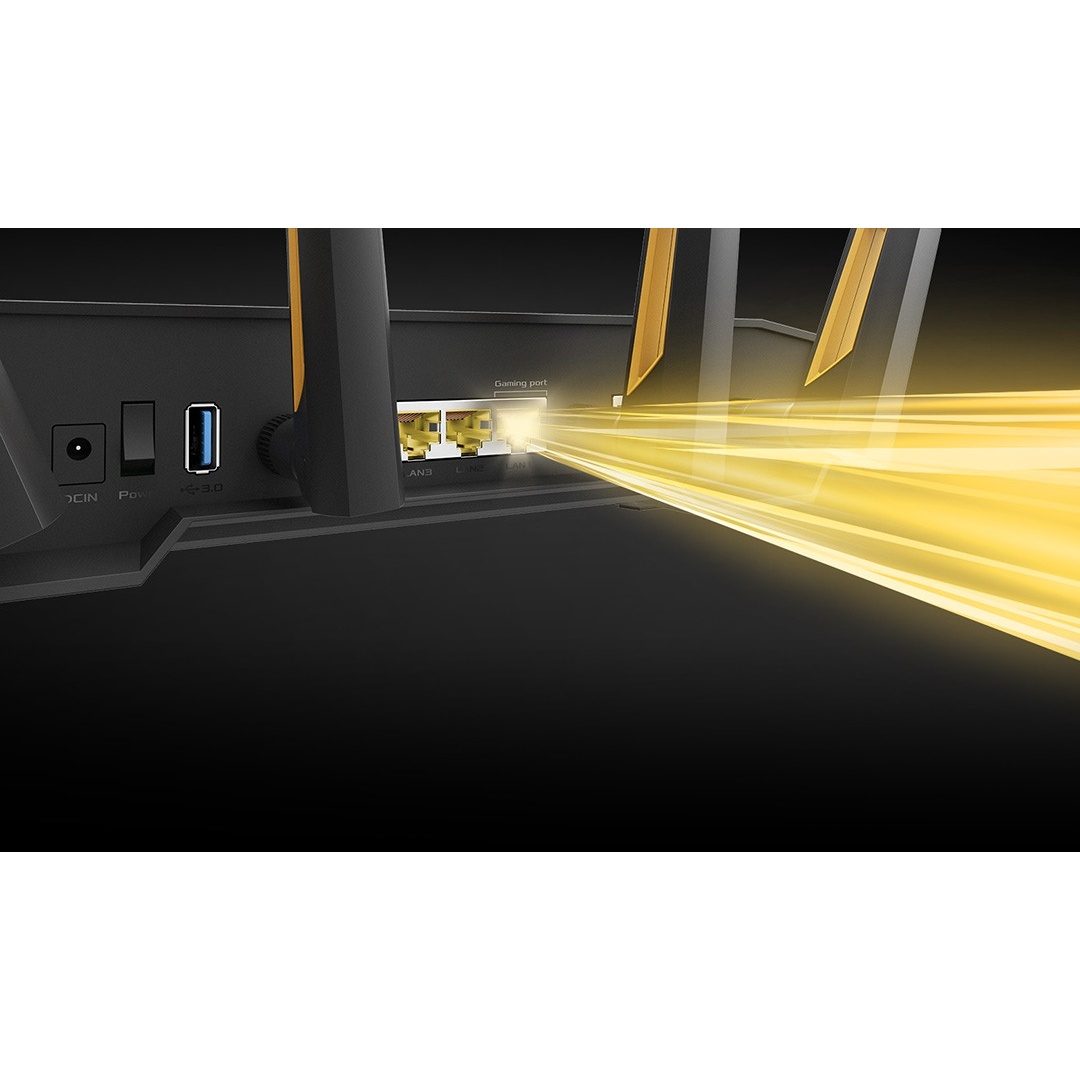

| 搭載ポート | RJ45 for Gigabits BaseT for WAN×1, RJ45 for Gigabits BaseT for LAN×4
USB 3.1 Gen 1×1 |
| 搭載ボタン | WPS Button, Reset Button, Power Switch |
| LEDインジケータ | Power×1
2.4G×1
5G×1
LAN×4
WAN×1 |
| 電源仕様 | AC Input : 110V~240V(50~60Hz)
DC Output : 19 V with max. 1.75 A current |
| 付属品 | TUF-AX3000 WiFi router
RJ-45 cable
Power adapter
Quick Start Guide
Warranty card |
| 質量 | 675 g |
| サイズ | 265×177×189 mm (with antenna)
265×177×55 mm (without antenna) |
| AiMesh | AiMesh
Primary AiMesh router
AiMesh node |
| ゲーム機能 | Game Boost / Acceleration
Mobile Game Mode
Gear Accelerator |
| ペアレンタルコントロール | Parental Control
Parental Control Customized Internet schedule |
| ゲストネットワーク | Guest Network
・Maximum Guest Network Rule : 2.4GHz x3, 5GHz x3
Guest Network Connection Time Limit |
| セキュリィー | WPS support, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise
WPS
SSH
Firewall
・Maximum Firewall Keyword Filter : 64
・Maximum Firewall Network Service Filter : 32
・Maximum Firewall URL Filter : 64 |
| AiProtection | AiProtection
Malicious site blocking
Two-Way IPS
Infected Device Prevention and Blocking |
| VPN | VPN Client L2TP
VPN Client OVPN
VPN Client PPTP
VPN Server IPSec
VPN Server OVPN
VPN Server PPTP
VPN Fusion |
| トラフィックコントロール | Adaptive QoS
Bandwidth Monitor
Bandwidth limiter
Maximum Bandwidth limiter rule:32
Traditional QoS
Maximum Traditional QoS rule:32
Traffic Monitor
Real-time traffic monitor
Wired Traffic Monitor
Wireless Traffic Monitor
Traffic Analyzer
Traffic analysis period:Daily, Weekly, Monthly
Website history |
| WAN | Internet connection Type :PPPoE, PPTP, L2TP, Automatic IP, Static IP
Dual WAN
3G/4G LTE dongle
Port forwarding
Maximum port forwarding rule:64
Port triggering
Maximum port triggering rule:32
DMZ
DDNS
NAT Passthrough :PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough,PPPoE relay |
| LAN | DHCP Server
対応
IPTV
Manually assign IP address
Maximum manually assign IP address rule:64
Wake on LAN (WOL) |
| ワイヤレス | UTF-8 SSID
WiFi MAC address filter
Maximum MAC filters:64
Wireless scheduler
Airtime fairness
RADIUS Server
Universal beamforming
Explicit beamforming |
| USBアプリケーション | File System:HFS+, NTFS, vFAT, ext2, ext3, ext4
Safely Remove disk
AiCloud
Download master
AiDisk
Media Server
Time Machine
Samba Server
FTP Server
Shared Folder privileges |
| 管理機能 | Configuration backup and restore
Diagnosis tools
Feedback system
System log |
