The STA540 from STMicro is a 4-channel, class AB audio amplifier designed for high quality sound applications. The four independent channels makes this amplifier a great choice for a number of projects, with needs ranging from four speakers stereo (F/R) to two-speaker bridge solutions. The chip accepts a voltage supply ranging from 8 to 22VDC and has very high output power capability.

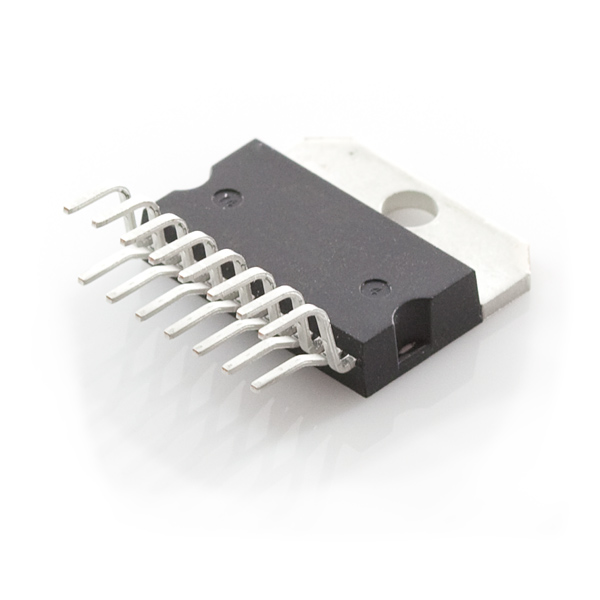

This chip comes in a staggered-lead Multiwatt-15 package. While our breakout board for the L298N isn't designed for it specifically, it will breakout out all pins of the STA540 to a more standard single row of 0.1" pitch headers. Also, keep an eye out for some upcoming amplifier products based on this chip!

It works great with the 6400BG Heatsink!

●Features

・High output power capability
・Standby function (CMOS compatible)
・Minimum external components count:
　－no bootstrap capacitors
　－no Boucherot cells
　－internally fixed gain 20 dB

・No audible pop during standby operations
・Diagnostic facilities:
　－clip detector
　－output to GND short-circuit detector
　－output to VS short-circuit detector
　－soft short-circuit check at turn-on
　－thermal shutdown warning

・Output AC/DC short circuit protection
・Soft short-circuit check at turn-on
・Thermal cutoff/limiter to prevent chip from overheating
